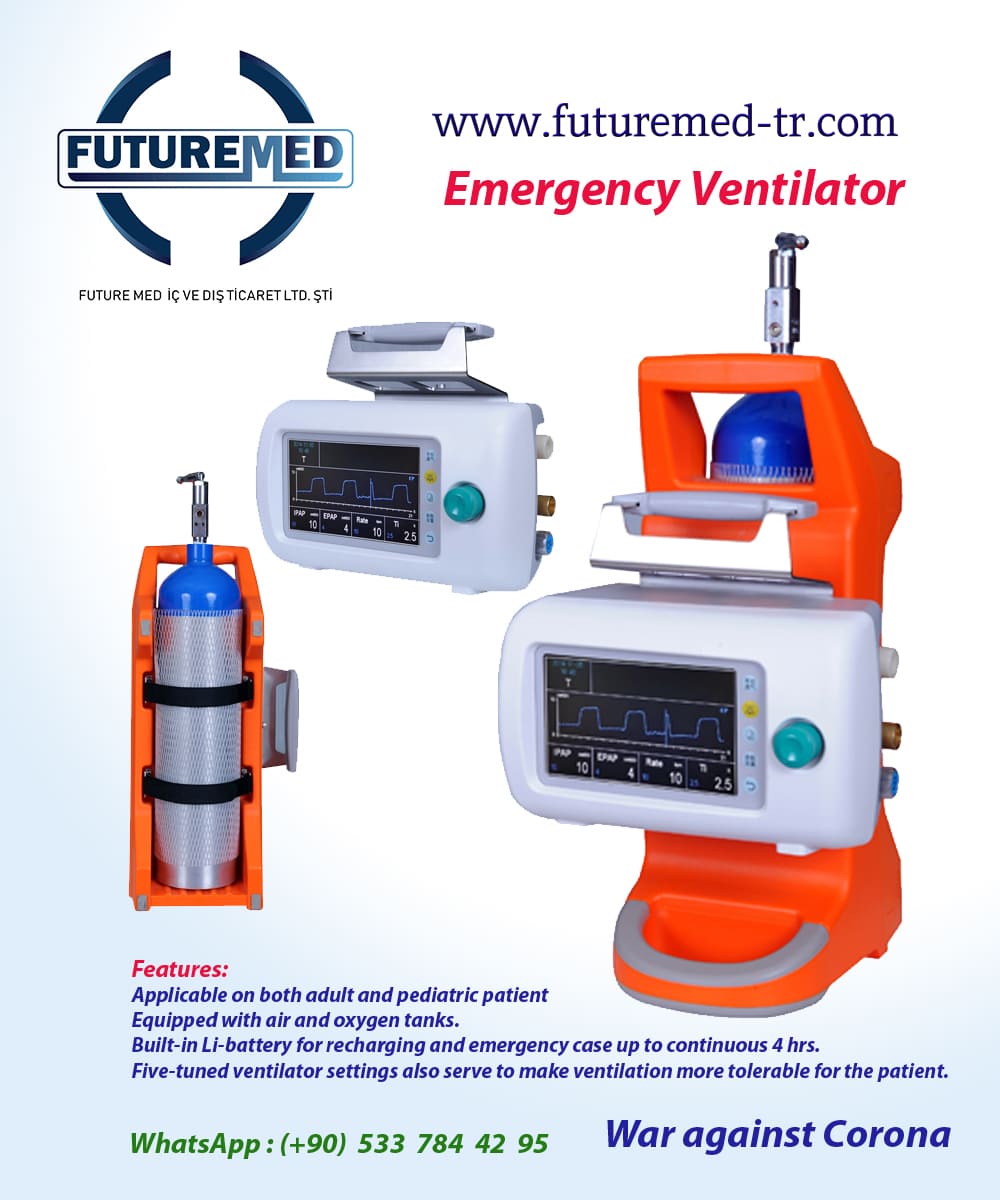

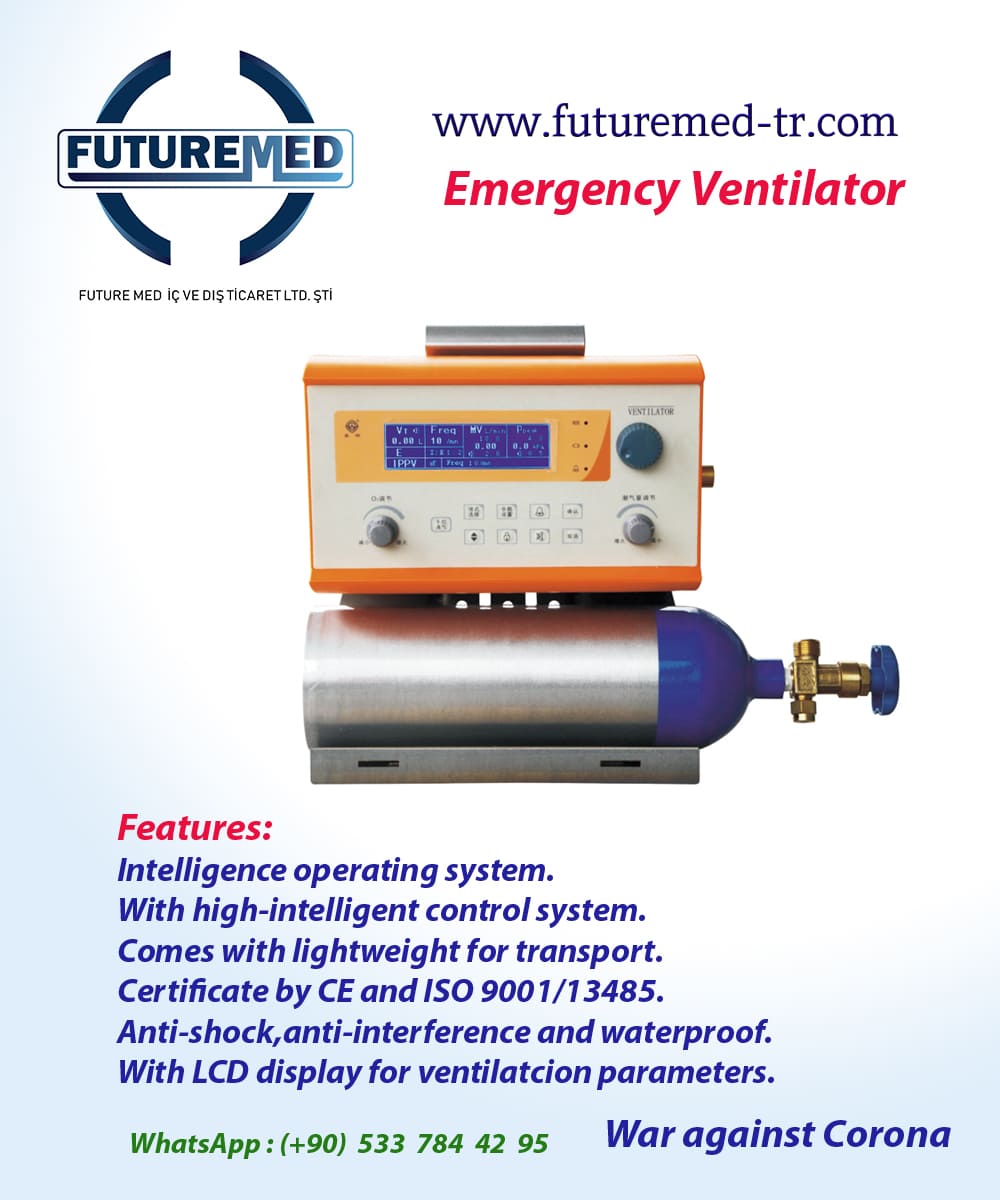

Emergency Ventilator

Emergency Ventilator portable FPD

Emergency Ventilator 2

Features

  • Equipped with air and oxygen tanks.
  • Built-in Li-battery for recharging and emergency case up to continuous 4 hrs.
  • Five-tuned ventilator settings also serve to make ventilation more tolerable for the patient.
  • Allow exact adaptation of pressure and flow characteristics to an individual patient’s needs.
  • Deliver an oxygen and air mix to a patient, with the concentration of the mix being adjustable.
  Specifications
  • Operating controlled
    Electronically
  • Application
    Applied for child and adult. Used for respiratory depression
    respiratory paralysis and failure of emergency rescue. Available in vehicle or portable stretcher.
  • Display
    7 inch LCD
  • Gas source
    Pure air or Oxygen
  • Ventilation mode
    VCV
    SIMV
    A/C
    SIGH
    MANUAL
    CPAP
  • Tidal volume
    0~1500ml
  • I.E
    4
  • Breathing rate
    4-99/min
    4-65/min under SIMV
  • FiO2
    48%~100%
  • Pressure trigger sensitivity
    -2~0kPa
    PEEP 0-20cmH2O
  • Monitoring Parameters
    Tidal volume
    Minute volume
    Breathing rate
    Airway pressure
  • Alarms
    No VT
    MV too high (low)
    Airway pressure too high(low)
    AC power off
  • back-up battery
    too low
    audio alarms or prompt hints
