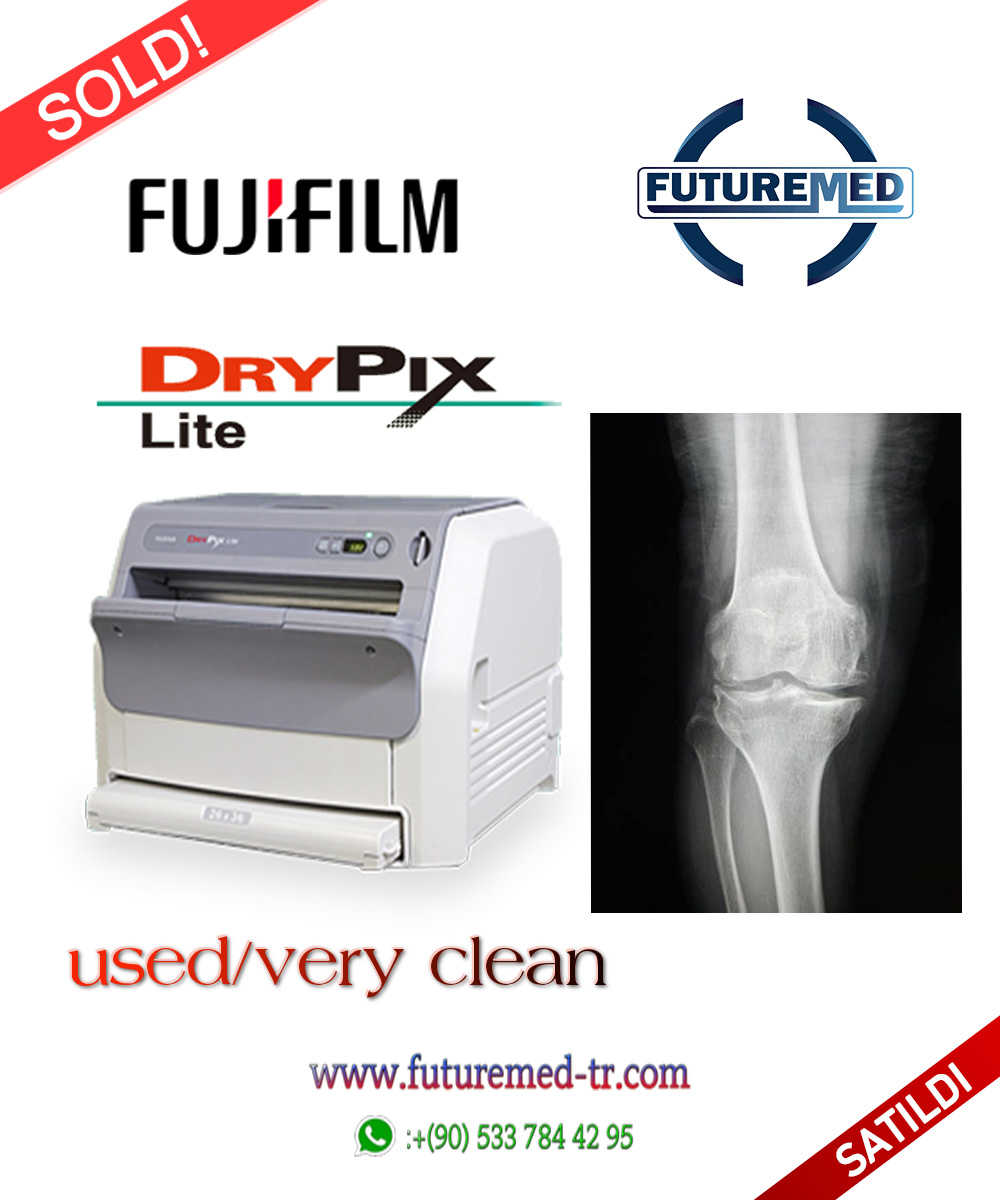

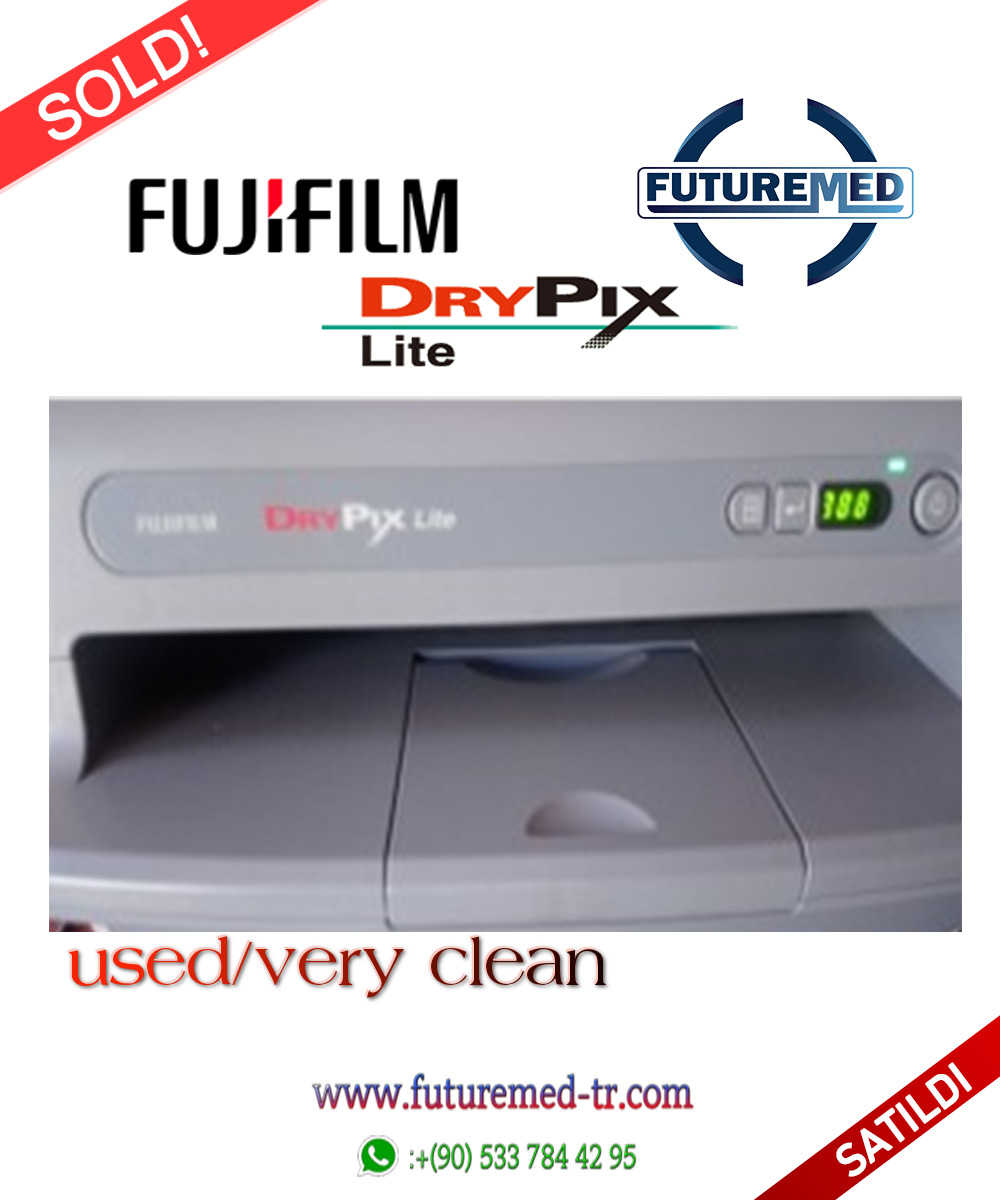

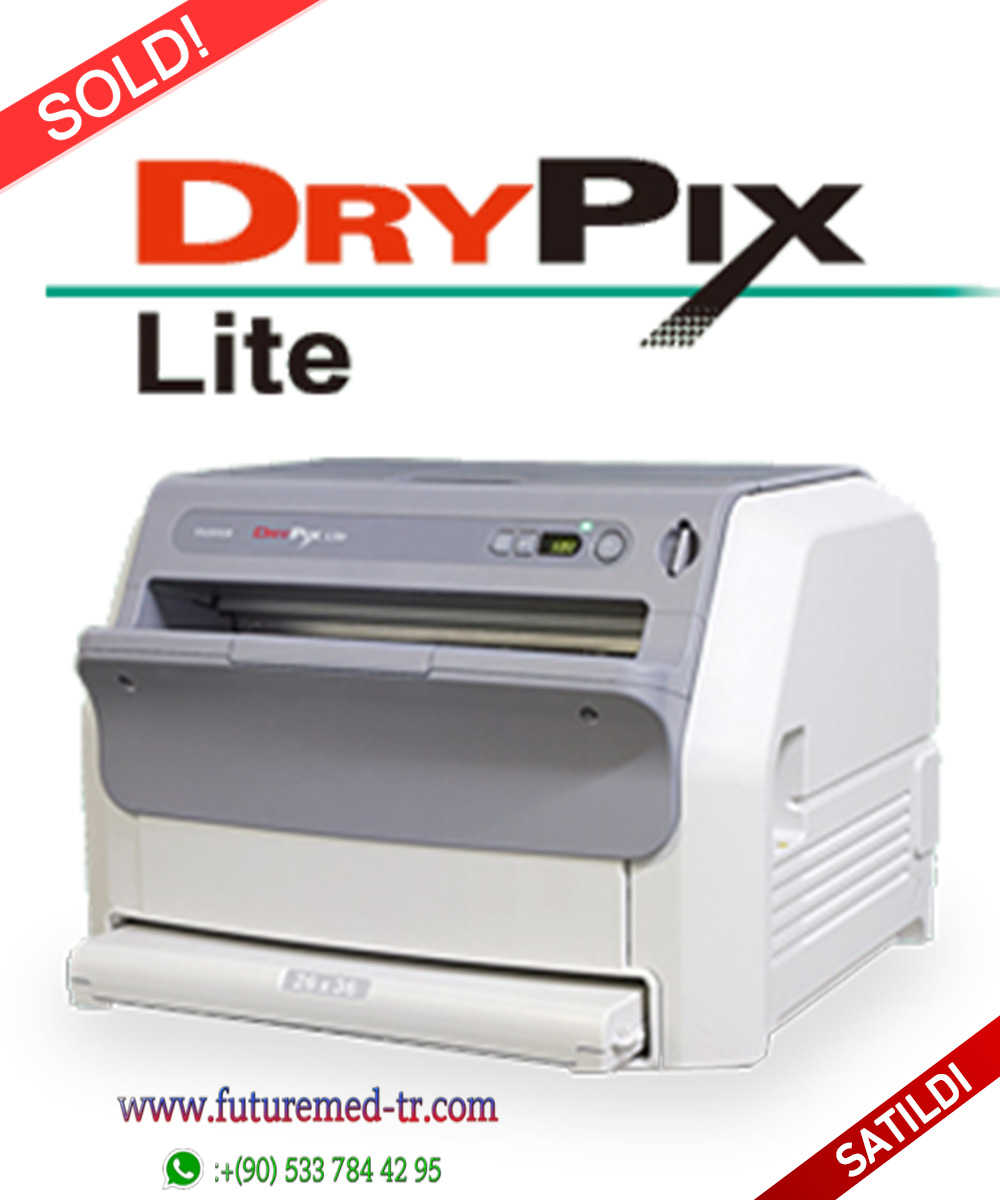

FUJIFILM DRYPIX Lite FUJIFILM

Features Used

  • Outstanding performance, remarkable efficiency and superb quality satisfy your medical imaging needs.
  • A new concept tabletop dry imager.
  • Supports multiple film size.
  • Expandable to two magazines.
  Specifications
  • Standard component
    Fuji Medical Dry Imager DRYPIX Lite (Model
  • Recording method
    Thermal head transfers heat while in contact with thermal film
  • Applicable film
    Fuji Medical Dry Film
  • Film loading
    Daylight film loading
  • Film magazines
    Up to 2 magazines
  • Processing capacity
    Approx. 50 sheets/hour 35 × 43 (14 × 17)
    Approx. 75 sheets/hour 26 × 36
    Approx. 65 sheets/hour 25 × 30 (10 × 12)
    Approx.90 sheets/hour 20 × 25 (8 × 10)
  • Pixel size
    84.7 μm (300 dpi)
  • Recording gradation
    12 bits
  • Image memory
    1 GB
  • Density adjustment
    Automatic
  • Input channels
    DICOM network input × 1 channel only
  • External dimensions ( W × D × H )
    530 x 590 x 365mm (21 x 23 x 14") with Large magazine/530 x 470 x 365mm (21 x 19 x 14") with Small magazine*180mm higher with optional sheet-feeder unit
  • Weight
    32 kg (71 lbs.) / 43 kg (95 lbs.) with optional sheet-feeder unit
  • Power supply
    Input voltag= AC100-240V / Phase= Single / Frequency=50-60Hz Rated current== 5-2A
